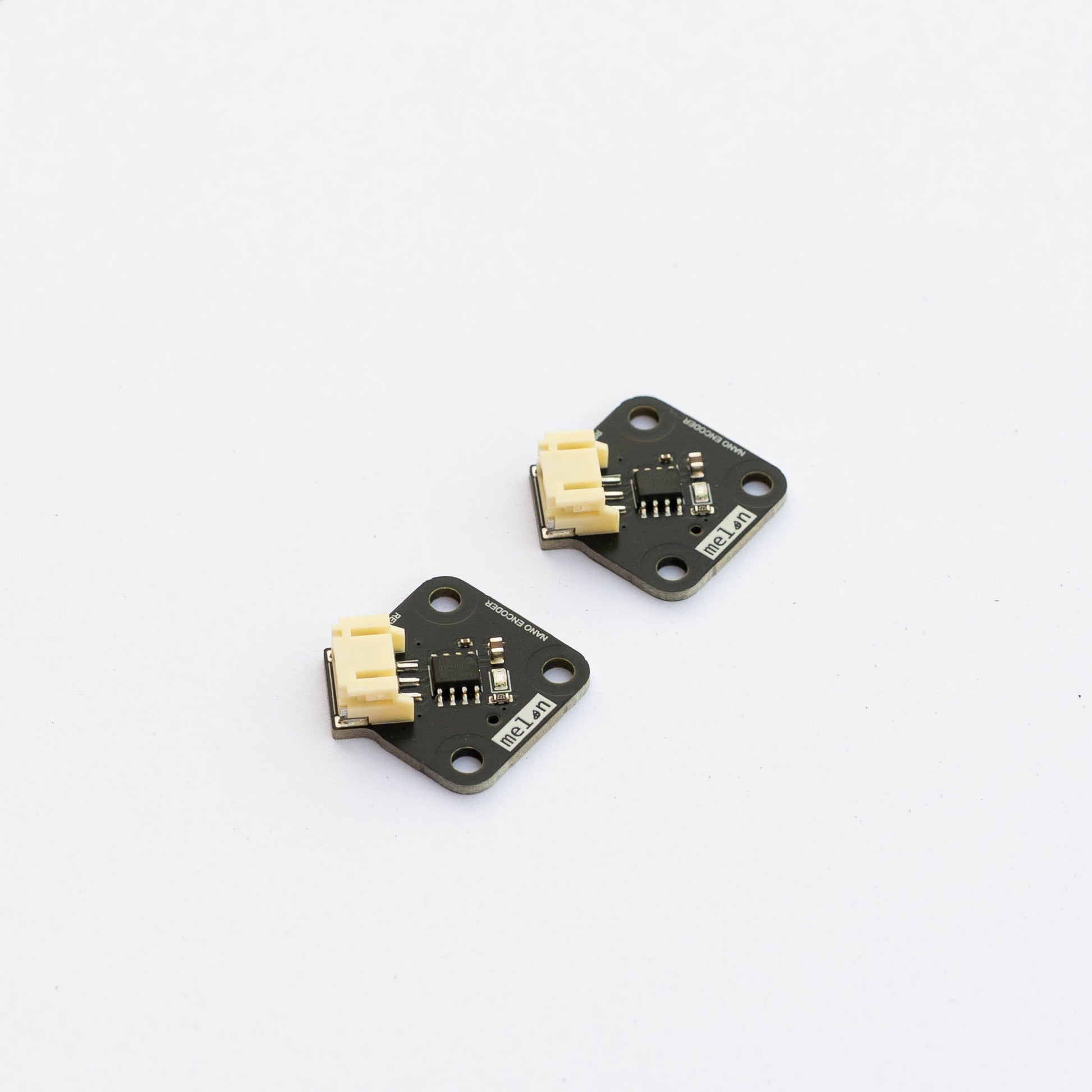

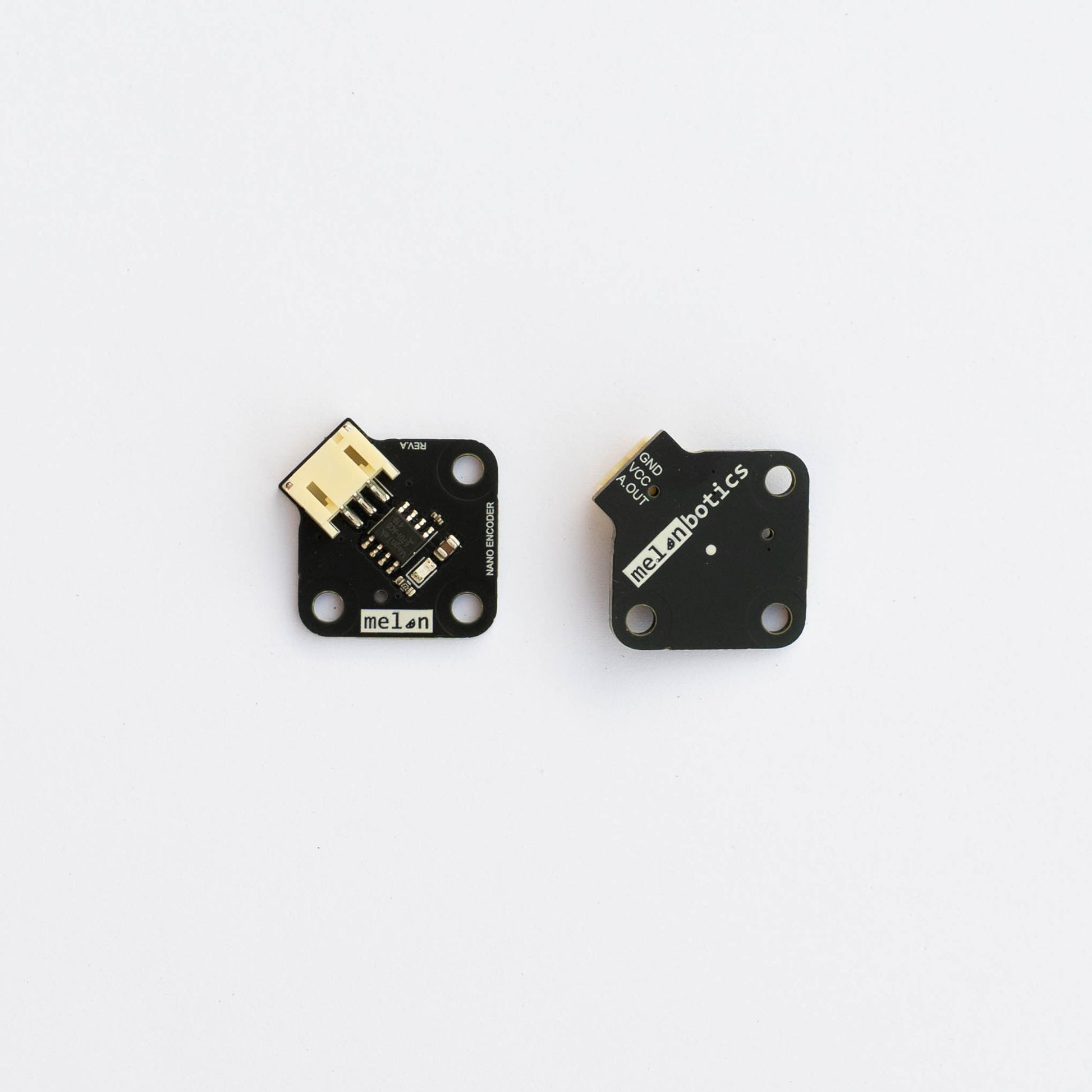

Nano Encoder

Magnetic absolute position output. Each 2-Pack includes two of the recommended 6mm x 2.5mm neodymium magnets, one analog joiner board and required cables.

Tech Specs

• Low noise, rail to rail absolute analog out on 3-Pin JST
• Green LED to indicate presence of power
• Nano sized footprint

Docs

Find product instructions and CAD download at: https://docs.melonbotics.com/nano-encoder

Whats Included

• 2x Nano Encoder
• 2x 6 x 2.5mm Diametrically Magnetized Neodymium Magnet
• 1x 4-Pin JST-PH Cable (500mm Length)
• 2x 3-Pin JST-PH Cable (300mm Length)
• 1x Analog JST 3-Pin to 4-Pin Joiner
